Micropolis 4221AV-Series

CONFIGURATION INFORMATION

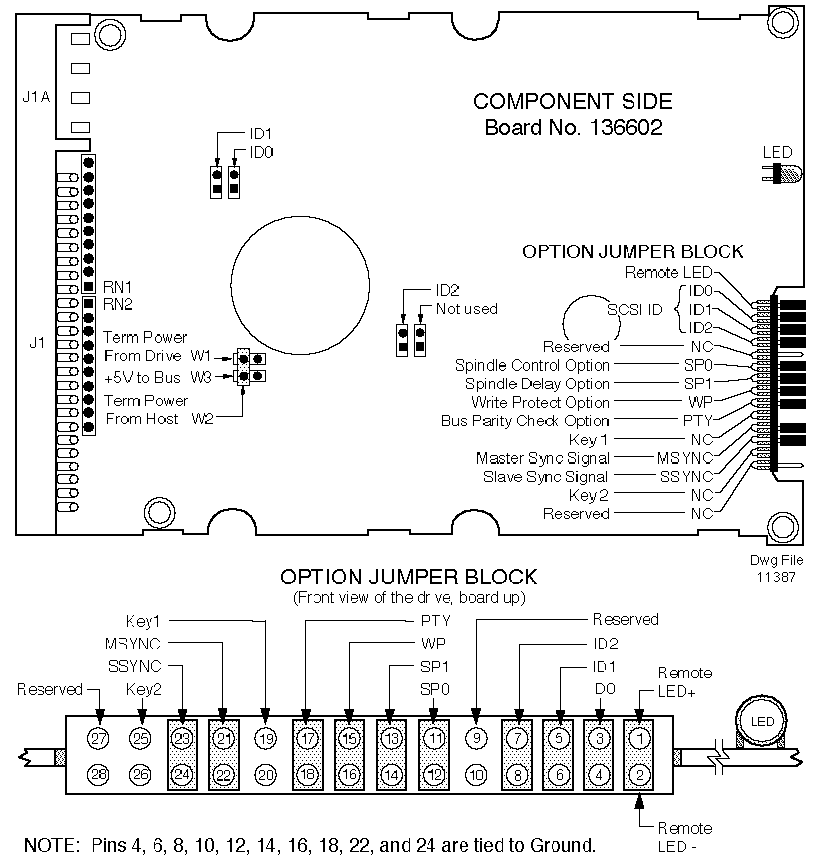

Configuration and Jumper Options

(Pin numbers refer to the Option Jumper Block)
SCSI ID Selection Jumpers at ID0, ID1, and ID2 (or a pins 3/4, 5/6, and 7/8) select the SCSI address. Use either group for address selection but not both at the same time. Each SCSI device on one Host Adapter must have a unique address.


	SCSI ID		ID2	ID1	ID0

	0 (Default)		out	out	out
	1		out	out	in
	2		out	in	out
	3		out	in	in
	4		in	out	out
	5		in	out	in
	6		in	in	out
	7	in	in	in

Interface Termination If terminators are installed at RN1 and RN2 (default), the drive provides termination for the SCSI interface. If the terminators are not installed, the drive does not provide interface termination. SCSI terminators are installed only in the end devices on the SCSI cable; remove the terminators from each of the other devices. The SCSI Host Adapter card and the last drive in the chain should have terminators.
Terminator Power W1 and W2 select the source of power (+5V) for terminators RN1 and RN2; W3 controls the drive supplying +5V to the bus.

   W1    W2    W3

    Y     N     -     Drive provides terminator power. (Default)
    N     Y     -     Host provides terminator pwr via J1 pin 26
                          to RN1 and RN2

    -     -     Y     Drive supplies +5V to the bus via J1 pin 26.
                          (Default)

Spindle Options Jumpers at SP0 (Pins 11 and 12) and SP1 (Pins 13 and 14) control the spindle options.

   SP0    SP1
     N      N     The drive starts the spindle motor at power-on.
                       (Default)
     Y      N     The drive waits for a Start Unit SCSI command
                       to start the spindle motor.
     N      Y     Spindle start-up is delayed based on SCSI ID
                       address (12 seconds per ID)

Write Protect A jumper at WP (Pins 15 and 16) selects the write protect option.

    Jumper	The drive is write protected.
    No Jumper	The drive is not write protected. (Default)

Parity A jumper at PTY (Pins 17 and 18) selects the bus parity check option. The drive always generates parity regardless of this option.

    Jumper	SCSI interface parity checking disabled.
    No Jumper	SCSI interface parity checking on. (Default)

Spindle Sync Signals SSYNC (pin 23) is the spindle sync output signal pin when the drive is mode selected to be the master drive. Pin 23 is the spindle sync input when the drive is mode selected to slave mode. MSYNC (pin 21) is the spindle sync output when the drive is mode selected to master control mode. The odd-numbered pins opposite SSYNC and MSYNC are ground return lines for the corresponding signals. Remote LED A user-supplied LED may be connected to Remote LED (pins 1 and 2).
